A custom maze board is not defined by its artwork alone: dimensions, captive magnets, cover construction, edge finish and testing determine whether it works safely and consistently. By the end, you will know what to specify, what to ask a Noida maker to quote, and how to approve a prototype or production batch.
Key takeaways
- Define board size, maze area, track width and wand dimensions before requesting quotes.
- Check MDF thickness, wall strength, finish, magnets and small-part safety on a physical sample.
- Send identical drawings and specifications to each Noida maker for comparable quotes.
- Approve a measured prototype and record batch acceptance checks before production.
Specify the Maze Before You Request a Quote
Specify length and width first: a quote for an mdf magnetic maze board for kids needs the finished board size, measured MDF thickness, target weight, usable maze area, number of routes, track width, wall height, minimum wall thickness and wand length, diameter and grip size.
1. Send a dimensioned sketch or vector file showing tolerances, corner radii, backing thickness, allowable warp, engraving depth and the complete magnet-cover-air-gap stack-up. Record the actual sheet thickness; nominal 3 mm, 5.5 mm, 6 mm and 9 mm MDF can differ.
2. Prefer a two-layer build: a recessed maze or follower sits behind acrylic or thin wood with a mechanically closed perimeter. A single sheet with an exposed underside leaves the magnet accessible and gives the token a route to escape.
3. Ask how the magnet is mechanically captured, how the cover is retained, and whether the board stays captive when inverted and lightly shaken. Test every corner and join to confirm that the wand does not snag.
| Mechanism | What moves | Main distinction |
|---|---|---|
| Pen magnet | A fixed magnet in the pen couples to a metal or magnetic follower beneath an enclosed panel | The follower stays below the cover |
| Captive-ball design | A magnet moves a captive steel ball | The ball must remain trapped inside its channel |
| Exposed-piece design | A loose magnetic piece travels on the surface | Detachment and access risks are higher |
Select magnet strength only after testing the finished assembly. Paint, adhesive, cover thickness and air gaps reduce coupling; a drawing alone cannot predict performance for a laser cut mdf maze board.
Check Child Safety, Materials and Finish on the Actual Sample
Judge an mdf magnetic maze board for kids from the finished sample, not the material label. Choose enclosed paths, inaccessible magnets and no detachable small parts; match the age grading to the design and specify adult supervision for younger children. Ingested high-powered magnets can cause intestinal perforation, blockage, infection or death.
Glue alone is not adequate retention: require mechanical capture and abuse testing. For US-bound toys, check ASTM F963 and the US CPSC small-parts ban; identify the exact rules for the destination sales market.
| Option | Moisture and finish | Safety and repeated-use considerations |
|---|---|---|
| Raw MDF | Exposed edges swell; high odour after cutting | Smooth faces but weak wet durability; seal edges |
| Painted MDF | Paint seals fibres and edges | Durable when the coating suits the age group; inspect chips |
| Laminated MDF | Best face and edge moisture resistance | Strong repeated-use surface; check lifting at corners |
| Plywood | Better moisture tolerance and lower swelling | Layered edges need sanding; splinter risk remains |
| Solid wood | Resists impact but moves with humidity | Sand and round edges; knots and grain can split |
Laser-cut MDF can retain carbonised edges and smoke or formaldehyde-related odour. Require extraction, cooling, soot removal and an age-appropriate coating where specified. For a wooden magnetic maze board in Noida, request sealed edges or laminated or painted faces for monsoon humidity.
Reject a sample with:
- Dirty kerfs, rough edges, uneven walls, unstable backing or loose joints
- Sharp projections, unrounded corners, splinters or a cover that flexes
- A cover that opens, shifts or loses the captive magnet when inverted and lightly shaken
Send the Right Brief to a Noida Maker and Compare Quotes
Send a vector maze file or dimensioned sketch with the target quantity, use case, destination, age group, outer dimensions, measured MDF sheet thickness, cover material, magnet specification, finish, engraving content, packaging and required delivery date. State whether it is a one-off prototype, classroom or small batch, retail product or promotional giveaway.
| Order type | State this clearly | Documentation to request |
|---|---|---|
| Prototype | One board for approval | Physical first-article charge and functional check |
| Classroom or small batch | Limited repeated use | MOQ, batch lead time and replacement policy |
| Retail children’s product | Sale to a defined age group | Magnet-retention and functional test records, material or coating declarations, age-label guidance and batch traceability |
| Promotional giveaway | Branded distribution | Packaging, engraving approval and delivery terms |
Ask the custom magnetic maze board maker to separate MDF, magnets, cutting, engraving, assembly, finishing, packaging, tooling, testing and prototype charges. Request the artwork approval process, MOQ, physical first-article charge, batch lead time, replacement policy and delivery or pickup terms.
Local delivery can add packing and transport time; pickup requires a protected vehicle and inspection before acceptance.
Laser Job Services is one local option to contact, but compare its written specification and sample with other suppliers rather than choosing on location alone. Use the same brief when you buy custom mdf magnetic maze board in Noida so quotes remain comparable.
Related product

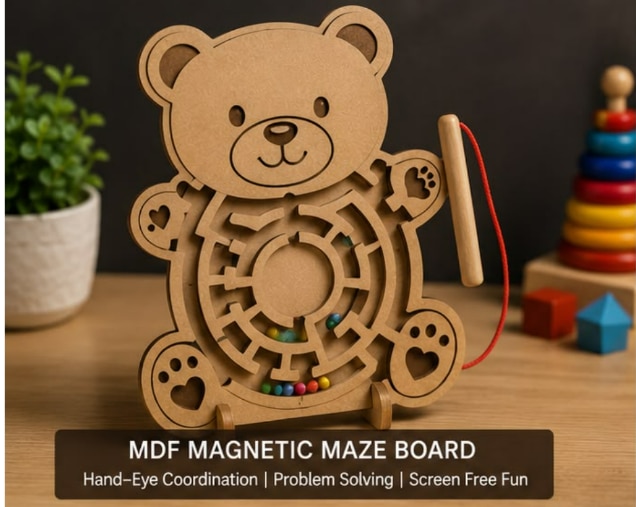

 | MDF Toys For Kids MDF Magnetic Maze Board for Kids Laser Job Services is a manufacturer of creative and precision-cut MDF products, offering thoughtfully designed products for educational, activity... View product → |
Choose Customisation Without Creating a Production Problem
Request customisation only when it improves identification, play value, or protection, and make the custom magnetic maze board maker prove each change on a physical sample. A laser cut mdf maze board can look attractive while becoming harder to read or play after finishing.
| Custom request | Question to confirm before production |
|---|---|
| Child’s name or school branding | Can the engraving remain legible at the intended viewing distance? |
| Logo | Does the artwork meet the minimum stroke width, and can you approve a physical proof? |
| Maze theme or difficulty level | Can the theme fit the geometry, and are route length, intersections, dead ends, track width, and wall height specified? |
| Colour | Will paint, laminate, or clear coat reduce the magnet’s working distance? |
| Non-rectangular shape | Does the outline preserve wall strength and leave enough material at corners? |
| Mounting holes | Will the holes weaken the selected MDF thickness or intersect the maze? |
| Retail packaging | Does the pack protect corners, engraving, and the cover during transport and shelf handling? |
Laser engraving darkens MDF through charring, not by removing a clean pale layer. Fine text can disappear after sanding or clear coating, so require production artwork with a minimum stroke width and approve a physical proof.
Define “easy” or “advanced” with measured geometry, not labels alone. For a repeat design, control the maze as vector artwork, record the approved material thickness, and retain an acceptance sample.
Do not approve production from a photograph when alignment, surface texture, or engraving scale affects performance. Confirm the complete magnet, cover, finish, and air-gap stack-up on the actual board.
Approve the Prototype and Set Acceptance Checks for Every Batch
Approve the finished assembly, not a drawing or photograph. The process differs for a one-off, a small batch and repeat production.
1. For a one-off, test the complete board with the intended wand, cover and finish before accepting dimensions. Confirm the wand completes every route without binding, the magnetic follower stays captive when inverted and lightly shaken, the cover remains closed after foreseeable handling, and every joint and edge is secure.
2. For a small batch, approve one first article, then inspect a sample from the finished run. Check consistent wall thickness, a flat backing, readable engraving at the intended viewing distance, and the absence of soot, splinters, sharp corners or loose components.
3. For repeat production, control the vector file, measured MDF thickness, colour or coating, packaging method, allowable warp and batch traceability before ordering. Record the approved maze dimensions, magnet position, cover gap and finished weight.
For a retail children’s product, request age grading, magnet and small-parts test evidence, material or coating declarations and batch records. A display or classroom prototype may need only dimensional and functional acceptance.
These checks matter whether you buy custom MDF magnetic maze board in Noida or order a wooden magnetic maze board in Noida. They convert a promising sample into a repeatable purchase specification.
Frequently asked questions
What details should you specify before requesting a custom MDF magnetic maze board quote?
Provide the finished length and width, measured MDF thickness, target weight, usable maze area, number of routes, track width, wall height, minimum wall thickness and wand length, diameter and grip size.
How can you check a magnetic maze board for child safety?
Inspect the actual sample for loose magnets, detachable small parts, sharp edges, splinters, weak walls, exposed hardware and a finish that remains intact during normal handling.
How should you compare quotes from Noida maze board makers?
Send each maker the same drawing, material specification, dimensions, finish requirements, prototype request, packaging details and batch inspection criteria; then compare what each quote includes.
How do you customise a laser cut MDF maze without causing production problems?
Keep every feature within the material's workable limits, including minimum wall thickness, narrow track widths, tight corners, engraving depth, magnet pockets and the chosen board thickness.
What should you approve before ordering a production batch?
Approve a measured physical prototype, confirm the maze route and wand movement, and document checks for dimensions, weight, finish, wall integrity, magnet retention and packaging.
